Integrating with iOS Apps

    Rock helps you package your React Native code into files that your iOS and Android apps can use. For iOS, it creates a .xcframework file that you can easily add to your app.

    To add React Native to your iOS app, we'll package your React Native code into an XCFramework. This way, you don't need to set up Node.js or CocoaPods in your main app.

    To make the integration simpler and more powerful, we'll use the React Native Brownfield library.

    Creating a New Rock Project (Automated)

    If you are creating a new Rock project, you can select the brownfield-ios plugin:

    > npm create rock
...
◆  What plugins do you want to start with?
│  ◼ brownfield-ios

    to add brownfield capabilities, install dependencies. Then jump to:

    Integrating to An Existing Rock Project (Manual)

    If you have an existing Rock project, follow the instructions below.

    1. Create a New Framework in React Native app's Xcode:

    1. Open your React Native project's ios/<project_name>.xcworkspace in Xcode

    2. Add a new target by clicking File > New > Target

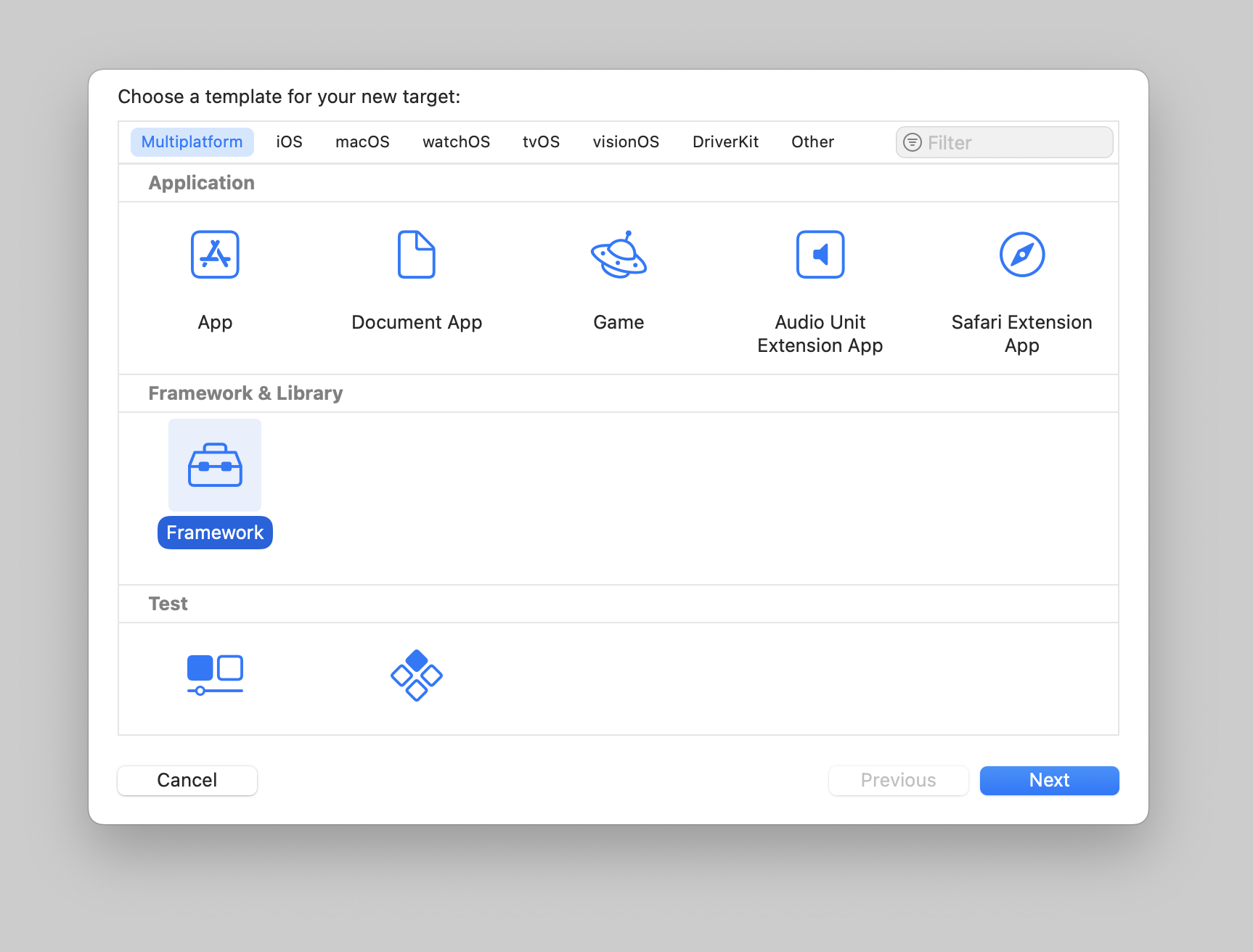

    3. Choose the Framework template Framework Target

    4. Give your framework a unique name. You'll use this name when adding it to your main app

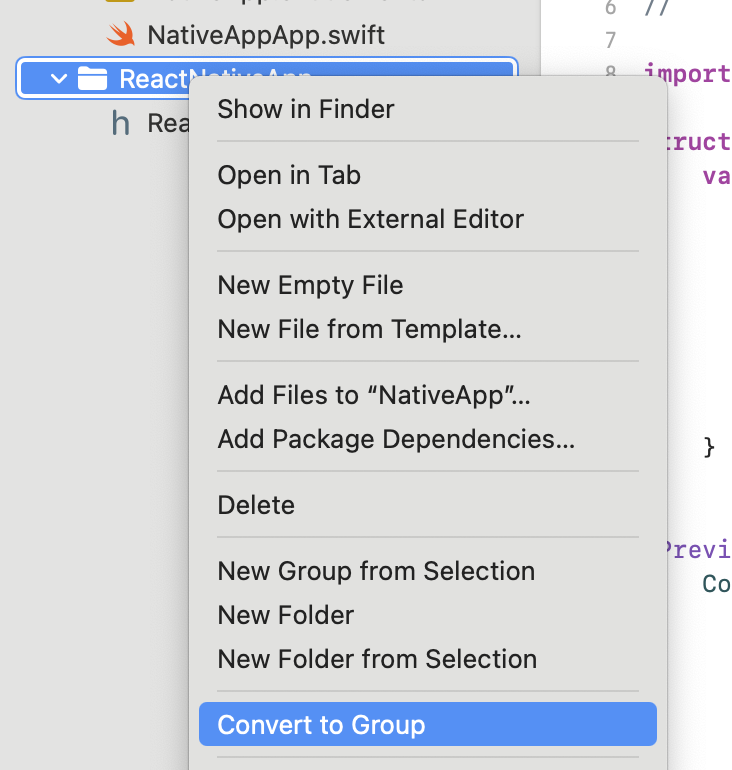

    5. Right-click the framework folder and select Convert to Group. CocoaPods doesn't work properly with references. Perform this step for both <FrameworkName> and <FrameworkName>Tests folders. The menu that appears when user right clicks on the generated framework folder

    6. Set these build settings for your framework:

      Build SettingValueWhat it does
      Build Libraries for DistributionYESCreates a module interface for Swift. Also checks if the framework works with your Xcode version.
      User Script SandboxingNOLets scripts modify files, which we need to create the JavaScript bundle.
      Skip InstallNOMakes sure Xcode creates the framework files we need.
      Enable Module VerifierNOSkips testing the framework during build, which makes builds faster.

    2. Update CocoaPods in your React Native app:

    1. Add your new framework to ios/Podfile:

      Podfile
      target '<project_name>' do
  # Add these lines
  target '<framework_target_name>' do
    inherit! :complete
  end
end

    3. Add the Bundle Script:

    1. In Xcode, click on your React Native app target
    2. Go to Build Phases

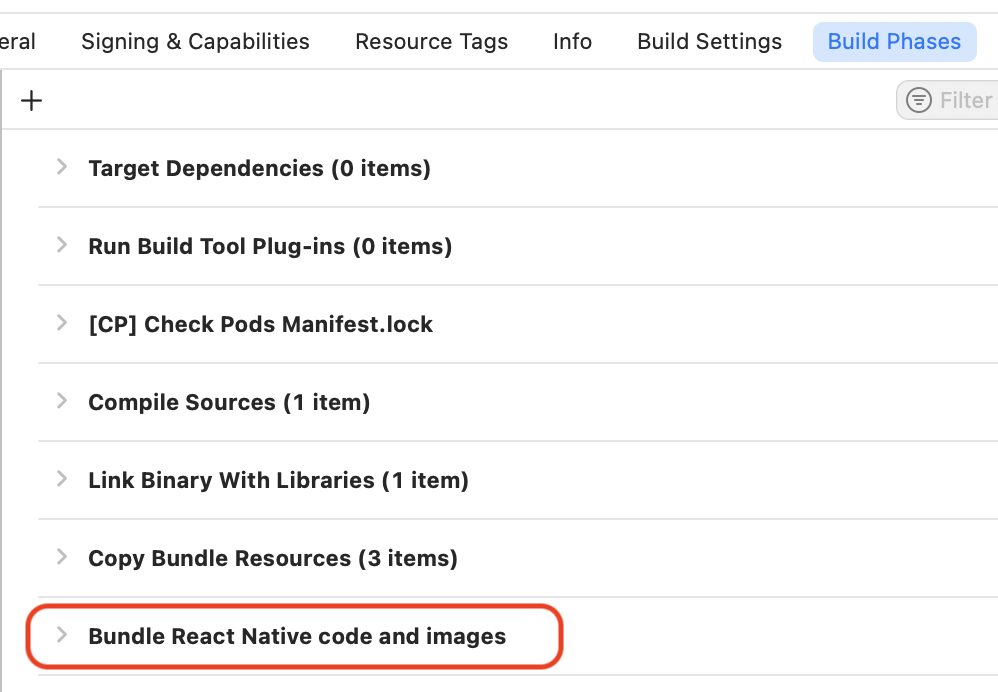

    3. Find the Bundle React Native code and images step Bundle React Native code and images build phase
    4. Copy the script from there
    5. Click on your framework target
    6. Go to Build Phases

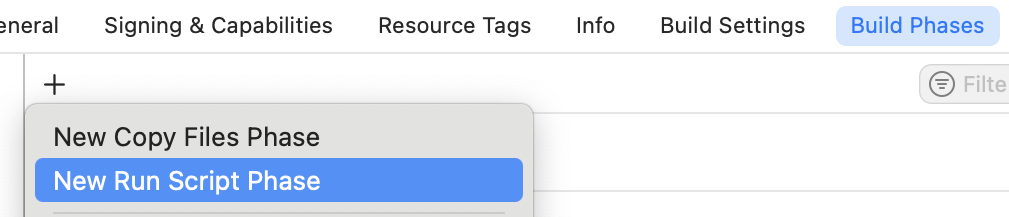

    7. Click the + button and choose New Run Script Phase New Run Script Phase
    8. Paste the script you copied
    9. Name the phase Bundle React Native code and images
    10. Add these files to the script's input files:
      • $(SRCROOT)/.xcode.env.local
      • $(SRCROOT)/.xcode.env

    4. Create the Framework's Public Interface:

    1. Install React Native Brownfield library:
      npm
      yarn
      pnpm
      bun
      deno
      npm install @callstack/react-native-brownfield
    2. Create a new Swift file in your framework folder using Xcode with the following contents:
      // Export helpers from @callstack/react-native-brownfield library
@_exported import ReactBrownfield
// Initializes a Bundle instance that points at the framework target.
public let ReactNativeBundle = Bundle(for: InternalClassForBundle.self)
class InternalClassForBundle {}

    5. Setup Rock's brownfield plugin:

    1. Add @rock-js/plugin-brownfield-ios to your React Native project

      npm
      yarn
      pnpm
      bun
      deno
      npm install @rock-js/plugin-brownfield-ios

    2. Add this to your rock.config.mjs:

      rock.config.mjs
      import { pluginBrownfieldIos } from '@rock-js/plugin-brownfield-ios';

export default {
  plugins: [
    pluginBrownfieldIos(),
    // ...
  ],
};

    6. Create the XCFramework

    Run the following command in Terminal to compile frameworks for Hermes, React Native Brownfield library, and your app:

    Terminal
    rock package:ios --scheme <framework_target_name> --configuration Release
    Warning

    If you want to run the React Native app independently from the native iOS app, you'll still need to run the package:ios command and add the ReactBrownfield.xcframework to the project, as instructed in step 7. Otherwise, the run:ios command will fail with:

    error: underlying Objective-C module 'ReactBrownfield' not found

    7. Add the Framework to Your iOS App:

    1. Open the .rock/cache/ios/package directory and drag the following files into your app's Xcode project (you can select all at once):

      .rock/cache/ios/package
├── hermesvm.xcframework                # JavaScript runtime (hermes.xcframework in React Native 0.81 or lower)
├── ReactBrownfield.xcframework         # React Native Brownfield library
└── <framework_target_name>.xcframework # Your framework target

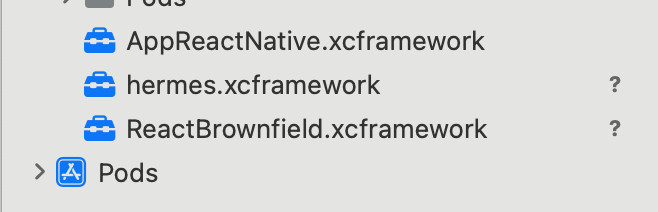

      Linked frameworks in Xcode sidebar

      Info

      Xcode builds depend on files being referenced in the project file. If you create a new source file without using Xcode, your file is not going to be referenced by the project.

    2. Initialize React Native in AppDelegate.swift and show it using ReactNativeViewController available from React Native Brownfield library:

      AppDelegate.swift
      import <framework_target_name>

@main
class AppDelegate: UIResponder, UIApplicationDelegate {
    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
        // Initialize React Native
        ReactNativeBrownfield.shared.bundle = ReactNativeBundle
        ReactNativeBrownfield.shared.startReactNative(onBundleLoaded: {
            print("React Native bundle loaded")
        }, launchOptions: launchOptions)

        // Add `window` property required by React Native
        window = UIWindow(frame: UIScreen.main.bounds)

        // Create VC that calls your module by name registered by `AppRegistry.registerComponent` of your React Native app
        let reactNativeVC = ReactNativeViewController(moduleName: "ReactNativeApp")

        // Display the view as full window or anyhow you need
        window?.rootViewController = reactNativeVC
        window?.makeKeyAndVisible()
    }
      Note

      Instead of using AppDelegate you can also use SceneDelegate

      8. Run your native iOS App

      Now that you have everything set up, you can run your app in Debug or Release configuration, and it will display a React Native app we just packaged with package:ios command.

      Debug configuration

      When running in Debug, React Native Brownfield will expect you to run a JS dev server.

      You can do so by running start command in your Terminal app:

      npx rock start

      Release configuration

      When running in Release, React Native Brownfield will load the JS bundle (main.jsbundle) directly from the release XCFramework file without requiring you to run any JavaScript tooling.
